Needled punched Battery Pasting Belt 5mm Thickness Acid Resistance

Battery Manufacturing Machinery Endless Belt With Acid Resistance

This is a kind of seamless conveyor belt specially applied to the Battery Manufacturing Machinery. In the production process of the battery,pasting plates is am very important part of the process.There will be needed a conveyor belt to carry the plates to the position of the paste,that conveyor belt is called Battery Pasting Belt. This kind of belt’s service cycle is about 7-15 days, it could past the plate at most 10 lacs, of couse the service cycle is also related to the customers’ using habits.

Product specification:

Product name: Battery Pasting Belt

Raw material : Synthetic Fiber

Production Process: Needle-punched

Appearance: No scratches / depressions / bulges on the surface, no lint;Neat trimming, no flash; Uniform thickness;

Glue layer: 2.5-3MM

Tolerance: Length: ±5MM Thickness: ±0.2MM

Thickness: 3-10MM

Length: 1770-4000MM or as your demands

Width: 200-800MM or as your demands

Product Details

The commonly used size for your information:

If there have no your size, kindly let me know,we accept customization.

Some of the application show FYI:

Packing & Delivery:

Package: plastic bag + Bubble wrap + woven bag

Delivery: by courier or by air or by sea or as your demands

Daily maintenance and instructions

6.It should be used within four months after received

7.It should be stored in a low-temperature dry environment,to avoid direct sunlight

8.It should be check if there have any sundries on the both side of the belt,in order to avoid scratching the belts

9.It should be as wet as possible when use the belt

10.It should be washed with a clean surface after half-working day

Note:on the basis of the working life,good maintenance can increase the working life

synthetic conveyor belt

synthetic felt fabric

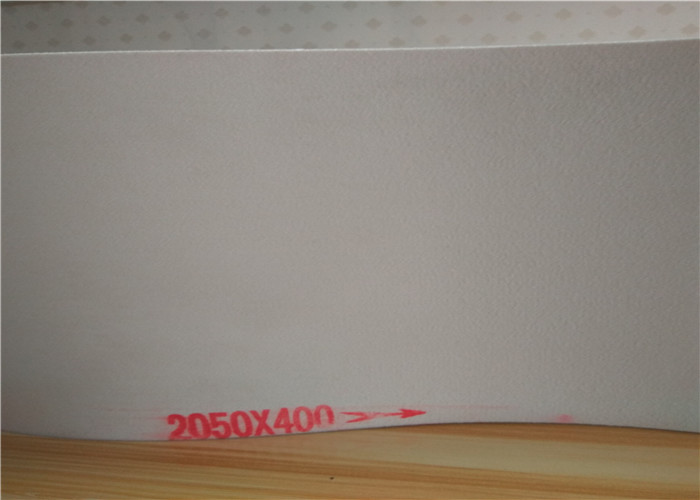

Needled punched Battery Pasting Belt 5mm Thickness Acid Resistance Images
